Vortex-Jet Pipe Cleaning Nozzle

Vortex-Jet Pipe Cleaning Nozzle

1000 -1400 bar | 22 - 150 LPM

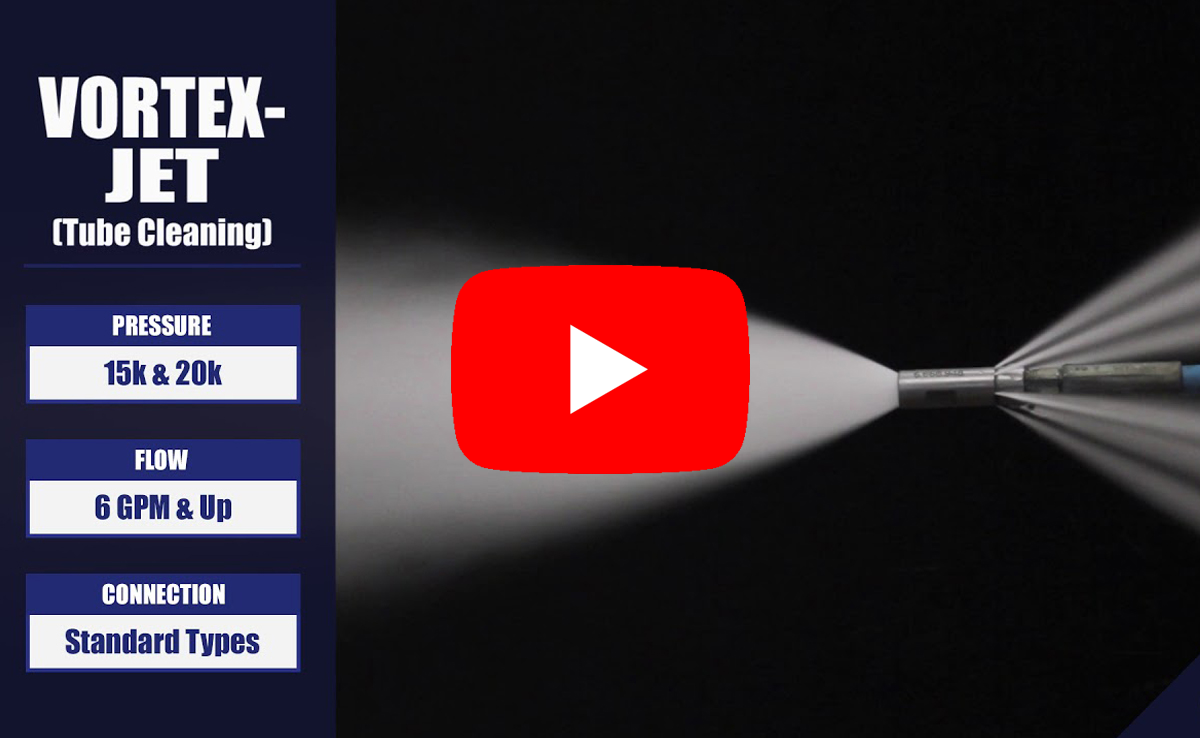

The patented Vortex-Jet High Pressure Nozzles are specially designed for cleaning up mineral corrosion accumulation or completely sealed pipes. The swirling action of liquid from the forward-facing jet creates a shear action for effective cleaning and removal of dirt.

In the design with the flexible lance application, the Vortex-Jet uses a set of 6 high-pressure rear jets to drive the nozzle forward and flush out dirt from the tubes.

The rigid lance design uses a point-flared end for easier access to pipes and is available without high-pressure rear jets.



Download the brochure for more information and technical specifications for the different models.

 Download Brochure

Vortex-Jet Pipe Cleaning Nozzle

1000 -1400 bar | 22 - 150 LPM

The patented Vortex-Jet High Pressure Nozzles are specially designed for cleaning up mineral corrosion accumulation or completely sealed pipes. The swirling action of liquid from the forward-facing jet creates a shear action for effective cleaning and removal of dirt.

Specifications

Pressure: 1000 -1400 bar (15,000 - 20,000 psi)
Flow: 22 - 150 LPM (3 - 42,1 gpm)
Application: Pipe cleaning, corrosion removal, dirt removal, unblocking, excavation etc.
Connection 15k: 1/16" NPTF, 1/8" NPTF, 1/4" NPTF, 3/8" NPTF, 1/2" NPTF
Connection 20k: 1/4 & 3/8 -28 Female LH or RH, 9/16-18 Female LH or RH, 9/16 MP
Dimensions: 49 - 105 x ø9.5 - 33 mm
Scope Of Use: 12 - 60 mm ( 0.5 - 2.4")
Water Temperature: 95 ⁰C (200 ⁰F)

Features

  • Strip-free cleaning (leaves no marks due to uniform spray pattern)
  • High reliability (no moving parts)
  • Optimal productivity (even spray coverage, little loss of fluid)
  • Robustly designed (minimal wear, no jamming and sensitive nozzle)
  • Ensures a safer workplace (quiet operation)
  • Financially advantageous (less costs in advance, little to no maintenance required)

Specifications

Pressure: 1000 -1400 bar (15,000 - 20,000 psi)
Flow: 22 - 150 LPM (3 - 42,1 gpm)
Application: Pipe cleaning, corrosion removal, dirt removal, unblocking, excavation etc.
Connection 15k: 1/16" NPTF, 1/8" NPTF, 1/4" NPTF, 3/8" NPTF, 1/2" NPTF
Connection 20k: 1/4 & 3/8 -28 Female LH or RH, 9/16-18 Female LH or RH, 9/16 MP
Dimensions: 49 - 105 x ø9.5 - 33 mm
Scope Of Use: 12 - 60 mm ( 0.5 - 2.4")
Water Temperature: 95 ⁰C (200 ⁰F)

Features

  • Strip-free cleaning (leaves no marks due to uniform spray pattern)
  • High reliability (no moving parts)
  • Optimal productivity (even spray coverage, little loss of fluid)
  • Robustly designed (minimal wear, no jamming and sensitive nozzle)
  • Ensures a safer workplace (quiet operation)
  • Financially advantageous (less costs in advance, little to no maintenance required)

Overview Available Vortex-Jet Nozzles

Item Pressure Flow Diameter
VJ06-38-15K 1000 bar (15,000 psi) 23 LPM (5,8 gpm) 9.5 mm (0.375 inch)
VJ09-50-15K 1000 bar (15,000 psi) 34 LPM (9 gpm) 13 mm (0.5 inch)
VJ14-69-15K 1000 bar (15,000 psi) 53 LPM (13,6 gpm) 18 mm (0.69 inch)
VJ25-93-15K 1000 bar (15,000 psi) 95 LpM (25,2 gpm) 24 mm (0.93 inch)
VJ42-130-15K 1000 bar (15,000 psi) 150 LPM (42,1 gpm) 33 mm (1.3 inch)
VJ06-50-20k 1400 bar (20,000 psi) 22 LPM (5,8 gpm) 9.5 mm (0.375 inch)
VJ09-57-20k 1400 bar (20,000 psi) 34 LPM (8,8 gpm) 13 mm (0.5 inch)
VJ14-69-20k 1400 bar (20,000 psi) 53 LPM (14 gpm) 18 mm (0,69 inch)
VJ21-93-20k 1400 bar (20,000 psi) 80 LPM (21,2 gpm) 24 mm (0.93 inch)
VJ26-130-20k 1400 bar (20,000 psi) 98 LPM (26,1 gpm) 33 mm (1.3 inch)
