Pipe Cleaning and Descaling

Pipe Cleaning and Descaling

SCIM2800 - 100-800mm

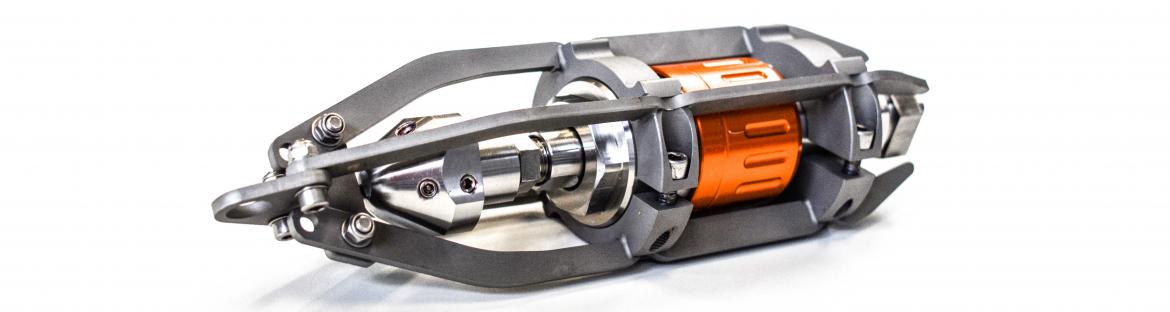

The SCIM2800 Pipe Cleaning and Descaling tool can be used with high pressure water, up to 2800bar (40,000psi), for the removal of corrosion, tuberculation, calcium and scaling from 100 – 800mm (4" - 32") pipelines. The SCIM2800 descaling tool is adjustable in RPM with high pressure jets, or lances in larger diameters, at a 90 or 45 degree angle with the pipe surface for controlled intense cleaning.

Compatible High-Pressure Units

The SCIM2800 can be used with PRO-JETTING high-pressure units and hot water burners.



Contact PRO-JETTING for more information!

Download Brochure

Pipe Cleaning and Descaling

SCIM2800 - 100-800mm

The SCIM2800 Pipe Cleaning and Descaling tool can be used with high pressure water, up to 2800bar (40,000psi), for the removal of corrosion, tuberculation, calcium and scaling from 100 – 800mm (4" - 32") pipelines. The SCIM2800 descaling tool is adjustable in RPM with high pressure jets, or lances in larger diameters, at a 90 or 45 degree angle with the pipe surface for controlled intense cleaning.

Specifications

Max. Pressure: 2800bar (40,000psi)
Flow: 25 LPM (7 gpm)
RPM: 1000 - 4000 RPM
Lance/ Jet angle: 45 and 90 degrees
Connections: Body: F 1 1/8” UNF & Kit: F 9/16” UNF LH (collar)
Weight: Adjustable Skids
Dimensions: Adjustable Skids
Scope of use: 100 - 800mm (4 - 32”)
Water Temperature: 45 ⁰C (140 ⁰F)

Features

  • Removes Calcium, Grease, Corrosion, Tuberculation and Scaling
  • Adjustable RPM
  • Exchangeable lances and jets
  • Exchangeable skids for use in various diameters
  • Winch attachment

Specifications

Max. Pressure: 2800bar (40,000psi)
Flow: 25 LPM (7 gpm)
RPM: 1000 - 4000 RPM
Lance/ Jet angle: 45 and 90 degrees
Connections: Body: F 1 1/8” UNF & Kit: F 9/16” UNF LH (collar)
Weight: Adjustable Skids
Dimensions: Adjustable Skids
Scope of use: 100 - 800mm (4 - 32”)
Water Temperature: 45 ⁰C (140 ⁰F)

Features

  • Removes Calcium, Grease, Corrosion, Tuberculation and Scaling
  • Adjustable RPM
  • Exchangeable lances and jets
  • Exchangeable skids for use in various diameters
  • Winch attachment
