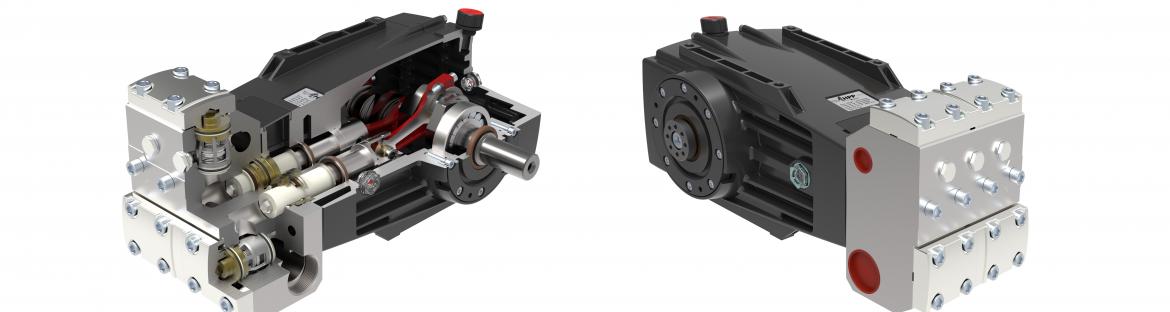

I-SERIES EF - EFR High Pressure Pumps

I-SERIES EF - EFR High Pressure Pumps

120 - 280 bar | 75 - 183 LPM | 36 - 46 kW

The EF / EFR high pressure pumps are available in 120 to 280 bar, 75 to 183 liters per minute and 36 to 46 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES EF - EFR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 800 to 2200 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

 Download Brochure

I-SERIES EF - EFR High Pressure Pumps

120 - 280 bar | 75 - 183 LPM | 36 - 46 kW

The EF / EFR high pressure pumps are available in 120 to 280 bar, 75 to 183 liters per minute and 36 to 46 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 120 - 280 bar
Flow: 75 - 183 LPM
Power: 36 - 46 kW
RPM: 800 - 2200 rpm
Montage: Horizontal
Weight: EF: 90 / EFR: 105
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Drive shaft kit (optional)
  • Seal kit max. 85 degrees (optional)

Specifications

Pressure: 120 - 280 bar
Flow: 75 - 183 LPM
Power: 36 - 46 kW
RPM: 800 - 2200 rpm
Montage: Horizontal
Weight: EF: 90 / EFR: 105
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Drive shaft kit (optional)
  • Seal kit max. 85 degrees (optional)

Overview available EF / EFR pumps

Code Model RPM Flow Pressure Power Weight
6919 0025 EF 75/280 850 rpm 75 l/min 280 bar 41 kW 90 kg
6919 0006 EF 88/250 1000 rpm 88 l/min 250 bar 43 kW 90 kg
6919 0020 EFR 88/250 1500 rpm 88 l/min 250 bar 43 kW 105 kg
6919 0021 EFR 88/250 1800 rpm 88 l/min 250 bar 43 kW 105 kg
6919 0022 EFR 88/250 2200 rpm 88 l/min 250 bar 43 kW 105 kg
6919 0002 EF 111/210 1000 rpm 111 l/min 210 bar 46 kW 90 kg
6919 0014 EFR 111/210 1500 rpm 111 l/min 210 bar 46 kW 105 kg
6919 0015 EFR 111/210 1800 rpm 111 l/min 210 bar 46 kW 105 kg
6919 0016 EFR 111/210 2200 rpm 111 l/min 210 bar 46 kW 105 kg
6919 0007 EF 123/150 800 rpm 123 l/min 150 bar 36 kW 90 kg
6919 0023 EFR 123/150 1500 rpm 123 l/min 150 bar 36 kW 105 kg
6919 0024 EFR 123/150 1800 rpm 123 l/min 150 bar 36 kW 105 kg
6919 0010 EF 127/180 1000 rpm 127 l/min 180 bar 45 kW 90 kg
6919 0032 EFR 127/180 1500 rpm 127 l/min 180 bar 45 kW 105 kg
6919 0033 EFR 127/180 1800 rpm 127 l/min 180 bar 45 kW 105 kg
6919 0034 EFR 127/180 2200 rpm 127 l/min 180 bar 45 kW 105 kg
6919 0008 EF 139/150 900 rpm 139 l/min 150 bar 41 kW 90 kg
6919 0003 EF 154/150 1000 rpm 154 l/min 150 bar 45 kW 90 kg
6919 0017 EFR 154/150 1500 rpm 154 l/min 150 bar 45 kW 105 kg
6919 0018 EFR 154/150 1800 rpm 154 l/min 150 bar 45 kW 105 kg
6919 0019 EFR 154/150 2200 rpm 154 l/min 150 bar 45 kW 105 kg
6919 0009 EF 165/120 900 rpm 165 l/min 120 bar 39 kW 90 kg
6919 0001 EF 183/120 1000 rpm 183 l/min 120 bar 43 kW 90 kg
6919 0011 EFR 183/120 1500 rpm 183 l/min 120 bar 43 kW 105 kg
6919 0012 EFR 183/120 1800 rpm 183 l/min 120 bar 43 kW 105 kg
6919 0013 EFR 183/120 2200 rpm 183 l/min 120 bar 43 kW 105 kg
