I-SERIES MLR High Pressure Pump

I-SERIES MLR High Pressure Pump

145 - 250 bar | 250 - 420 LPM | 118 kW

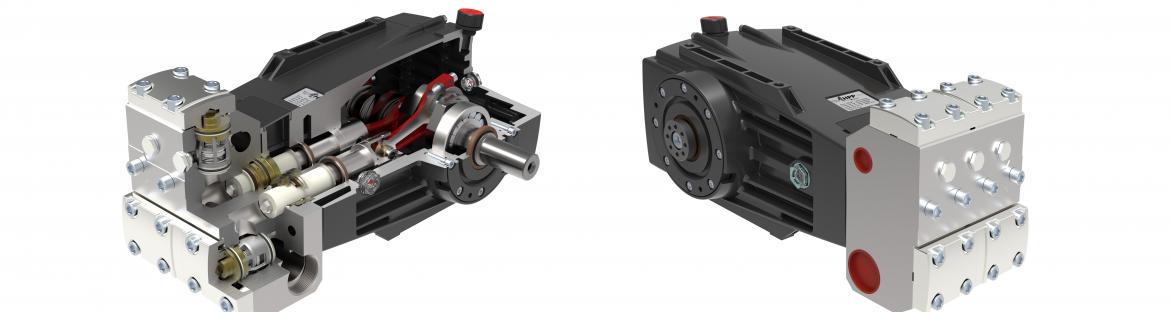

The MLR high pressure pumps are available in 145 to 250 bar, 250 to 420 liters per minute and 118 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES MLR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 1500 to 1800 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES MLR High Pressure Pump

145 - 250 bar | 250 - 420 LPM | 118 kW

The MLR high pressure pumps are available in 145 to 250 bar, 250 to 420 liters per minute and 118 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 145 - 250 bar
Flow: 250 - 420 LPM
Power: 118 kW
RPM: 1500 - 1800 rpm
Montage: Horizontal
Weight: 395 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pressure relief kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Bell housing for hydraulic connection (optional)
  • Oil cooler (optional)
  • Reversed Drive (optional)

Specifications

Pressure: 145 - 250 bar
Flow: 250 - 420 LPM
Power: 118 kW
RPM: 1500 - 1800 rpm
Montage: Horizontal
Weight: 395 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pressure relief kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Bell housing for hydraulic connection (optional)
  • Oil cooler (optional)
  • Reversed Drive (optional)

Overview available MLR pumps

Code Model RPM Flow Pressure Power Weight
6913 0002 MLR 250/250 1500 rpm 250 l/min 250 bar 118 kW 395 kg
6913 0007 MLR 250/250 1800 rpm 250 l/min 250 bar 118 kW 395 kg
6913 0003 MLR 300/200 1500 rpm 300 l/min 200 bar 118 kW 395 kg
6913 0008 MLR 300/200 1800 rpm 300 l/min 200 bar 118 kW 395 kg
6913 0004 MLR 360/170 1500 rpm 360 l/min 170 bar 118 kW 395 kg
6913 0009 MLR 360/170 1800 rpm 360 l/min 170 bar 118 kW 395 kg
6913 0005 MLR 420/145 1500 rpm 420 l/min 145 bar 118 kW 395 kg
6913 0010 MLR 420/145 1800 rpm 420 l/min 145 bar 118 kW 395 kg
