HDE30 High Pressure unit

HDE30 High Pressure unit

600 - 800 bar | 22 - 30 LPM | 30 kW

This robust high-pressure unit has been put together for heavy industrial work with a need for flexibility. Thanks to the durable stainless steel frame and housing, the unit can easily withstand a bump.

The unit is very user-friendly and can be combined with a hotbox to work with hot water. Because of the electric drive, the unit requires little maintenance and has low noise.

Due to the frequency-controlled motor, the pump has a high torque at various speeds, which makes it possible to work with a higher pressure in lower speed ranges. This makes this high-pressure installation widely applicable.



Curious about the possibilities? Contact us now and we will look together for the best solution for your application.

 Download Brochure

HDE30 High Pressure unit

600 - 800 bar | 22 - 30 LPM | 30 kW

Robust, compact and powerful. This High-pressure unit has been specially developed for industrial cleaning, is very easy to operate and can take a beating.

PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit
PRO-JETTING HDE30 High Pressure unit

Specifications

Power: 30 kW
Pressure: 600 - 800 bar
Flow: 22 - 30 LPM
Drive: Electric
Weight: Ca 300 Kg
Dimensions L x W x H: 1200 x 750 x 900 mm
Application: Industry, Offshore, Tank cleaning etc.

Features

  • Frequency-controlled pump drive
  • Pressure continuously adjustable with speed control
  • Durable stainless steel frame
  • Electronic water supply pressure monitoring
  • Stainless Steel Water Filter housing with water filter bag
  • Low noise
  • Low maintenance
  • SIR certified
  • CE certified
  • Remote control (optional)

Specifications

Power: 30 kW
Pressure: 600 - 800 bar
Flow: 22 - 30 LPM
Drive: Electric
Weight: Ca 300 Kg
Dimensions L x W x H: 1200 x 750 x 900 mm
Application: Industry, Offshore, Tank cleaning etc.

Features

  • Frequency-controlled pump drive
  • Pressure continuously adjustable with speed control
  • Durable stainless steel frame
  • Electronic water supply pressure monitoring
  • Stainless Steel Water Filter housing with water filter bag
  • Low noise
  • Low maintenance
  • SIR certified
  • CE certified
  • Remote control (optional)

Available options for the HDE30 High Pressure unit

Item Flow Pressure Dimensions
HDE30-600-30PRO 30 LPM 600 bar 1200 x 750 x 900 mm
HDE30-800-22PRO 22 LPM 800 bar 1200 x 750 x 900 mm

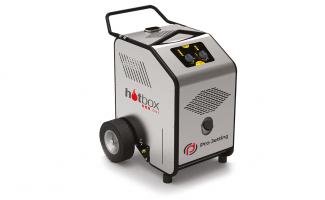

Hotbox

500 bar | 11 - 35 LPM | 35 - 110°C

Expand your current fleet with this mobile hot water unit. All high-pressure units up to 500 bar can be easily connected to this hot water unit, to quickly and efficiently remove stubborn dirt! With this mobile and also compact hot water unit you can manually control the temperature to handle any stubborn situation. This is optimal if you want to clean graffiti, industrial, roads or ships.
> Read more

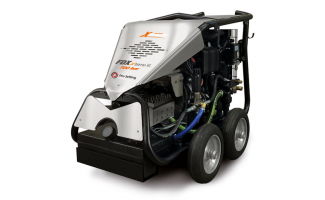

High Pressure Compact units

130 - 1500 bar | 13 - 42 LPM | 7,4 - 39,5 kW

The high pressure compact units are ready for you. Robust and compact design User friendly Excellent quality and reliability Affordable in purchase and maintenance Electric, diesel or petrol engine driven pump? The choice is yours.
> Read more

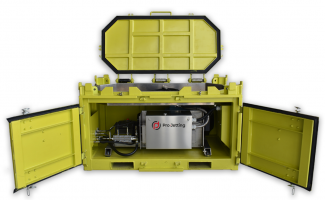

DNV Electric High pressure Units

310 - 1500 bar | 13 - 82 LPM | 37 - 63,7 kW

This high pressure unit is conveniently installed in a durable DNV container with stainless steel pump head and frequency controller for offshore and industrial cleaning applications. Available with electric drive up to 63.7 kW, with a maximum pressure of 310 – 1500 bar and a flow of 13 – 82 LPM.
> Read more
