Electric High Pressure Unit

Electric High Pressure Unit

21 LPM @ 190 bar

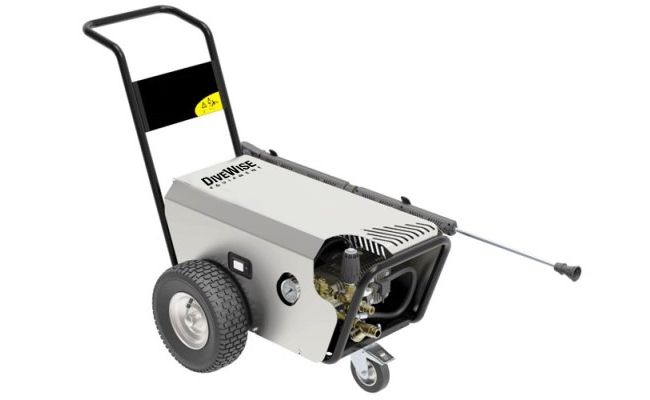

The electric HDE190_21 high pressure unit is compatible with the CW300 long cavitation gun for removing medium fouling. The unit is built as a solid cart with 3 wheels for easy transportation and requires a 6,7KW three-phase power supply.

We are happy to assist you in finding the cavitation cleaning equipment that best fits your application, contact DiveWise now!

Download Brochure

Electric High Pressure Unit

21 LPM @ 190 bar

The electric HDE190_21 high pressure unit is compatible with the CW300 long cavitation gun for removing medium fouling. The unit is built as a solid cart with 3 wheels for easy transportation and requires a 6,7KW three-phase power supply.

Specifications

Compatible with: CW300
Max. Pressure: 190 bar (2,755 psi)
Max. flow: 21 LPM (5.5 GPM)
Power: 6,7Kw, 400v, 50Hz
Weight: 63kg (140lbs)
Dimensions: 62x90x84cm (24.4x35.4x33.1")

Features

  • Removes medium fouling, debris and corrosion
  • Heavy duty, 3 wheeled cart
  • Stainless steel cover
  • Readily serviceable brass suction filter
  • Manual pressure valve
  • Motor thermal protection
