Electric PRO High Pressure Unit

Electric PRO High Pressure Unit

96 LPM @ 440 bar

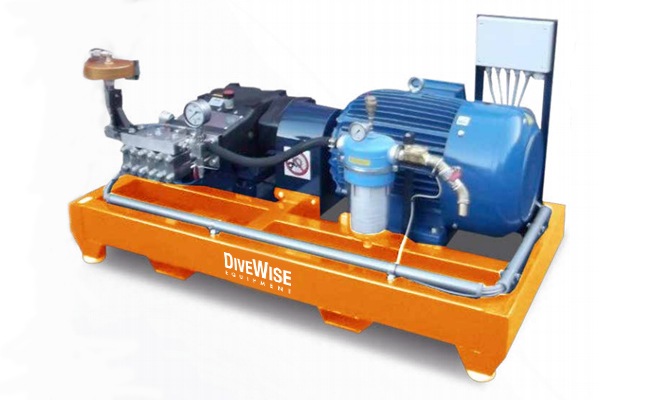

The electric HDE440_96 high pressure unit is built on a skid with stainless steel pump head for underwater coating removal and extreme offshore cavitation cleaning operations. The high water volume of 96 LPM at 440 bar can be used with the CW550 Pro retro gun.

We are happy to assist you in finding the cavitation cleaning equipment that best fits your application, contact DiveWise now!

Download Brochure

Electric PRO High Pressure Unit

96 LPM @ 440 bar

The electric HDE440_96 high pressure unit is built on a skid with stainless steel pump head for underwater coating removal and extreme offshore cavitation cleaning operations. The high water volume of 96 LPM at 440 bar can be used with the CW550 Pro retro gun.

Specifications

Compatible with: CW550, CW1500
Max. Pressure: 440 bar (6,380 psi)
Max. flow: 96 LPM (25.4 GPM)
Power: 75Kw, 400v, 50Hz
Weight: 1200kg (2,645lbs)
Dimensions: 220x145x125cm (86.6x57x49")

Features

  • Removes hard fouling, debris, corrosion and coatings
  • Stainless steel pump head
  • Heavy duty skid
  • Stainless steel cover
  • Big cartridge filter at pump inlet
  • Motor thermal protection
  • Hour counter
  • Emergency stop
  • Optional Atex certified
  • Available in 60 Hz versions

Specifications

Compatible with: CW550, CW1500
Max. Pressure: 440 bar (6,380 psi)
Max. flow: 96 LPM (25.4 GPM)
Power: 75Kw, 400v, 50Hz
Weight: 1200kg (2,645lbs)
Dimensions: 220x145x125cm (86.6x57x49")

Features

  • Removes hard fouling, debris, corrosion and coatings
  • Stainless steel pump head
  • Heavy duty skid
  • Stainless steel cover
  • Big cartridge filter at pump inlet
  • Motor thermal protection
  • Hour counter
  • Emergency stop
  • Optional Atex certified
  • Available in 60 Hz versions
